The Next Generation
Time Lapse Camera TLC300
Building Upon Past Successes
The Ultimate Outdoor Battery Solution
The long-awaited Brinno’s brilliant innovation, the APB1000 is an external power supply specifically designed to extend the battery life of time lapse cameras and IoT devices compared to originally battery-powered conditions. Its package includes a newly born Brinno Battery Pack (MRB1000) and the rechargeable external power supply kit.
Always-On For Time Lapse Camera
Truly worry-free recording experiences with continuous power supply to make sure every moment was captured without missing a shot from the time lapse camera.

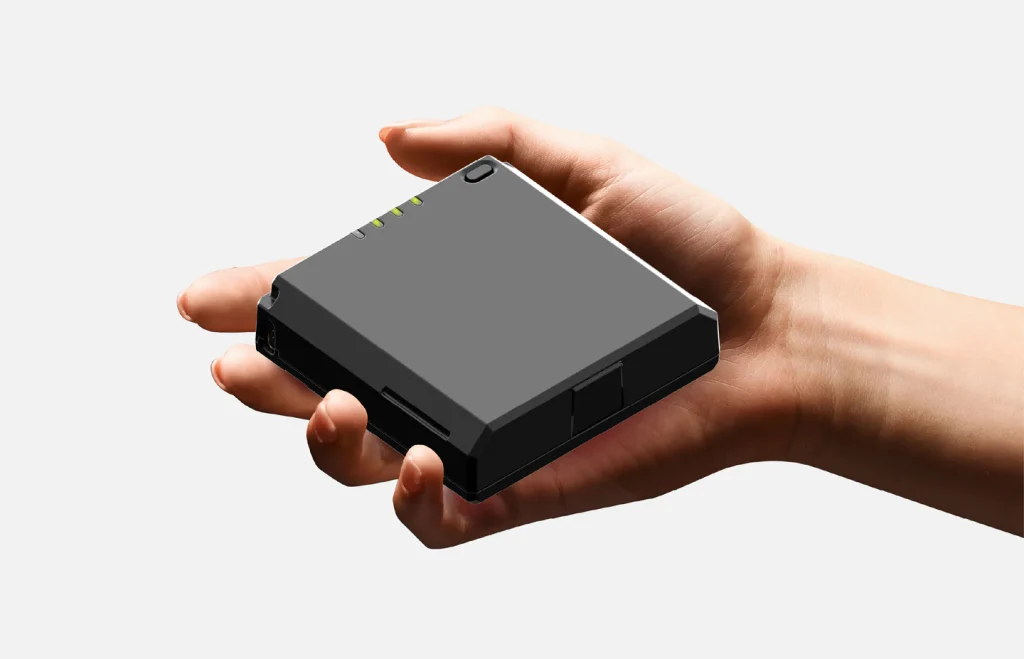

Rechargeable Battery Pack
Power your camera or mobile devices with limitless energy from the battery kit. The rechargeable kit extends the lifespan of single charge to infinity.

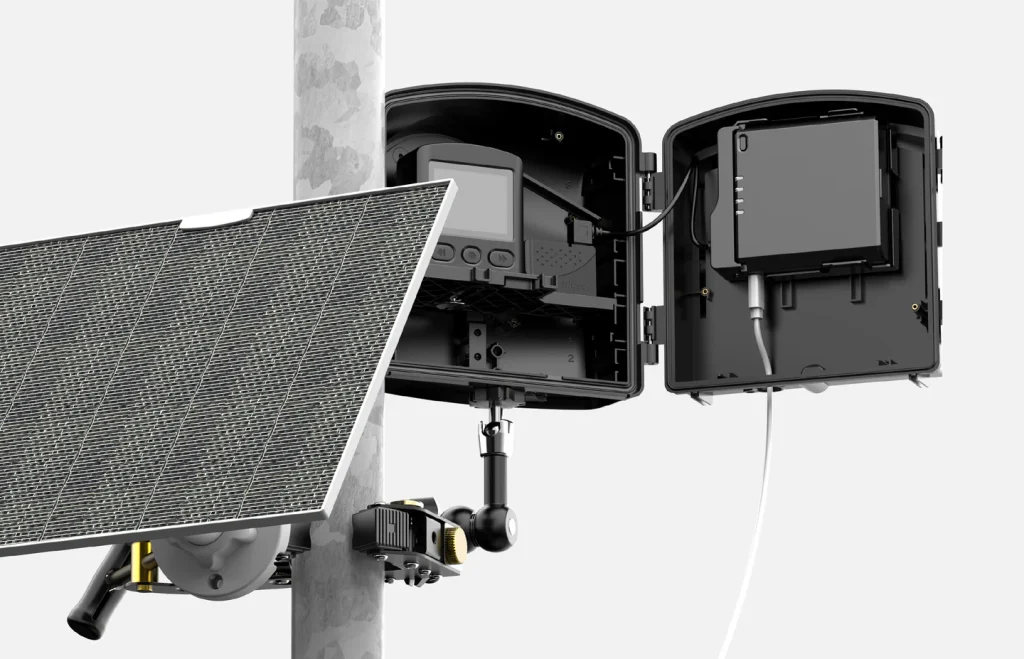

Compatible With Solar Power Kit
Perfectly compatible with Brinno Solar Power Kit (ASP1000, ASP1000-P), providing a continuous power supply through intense sunlight.

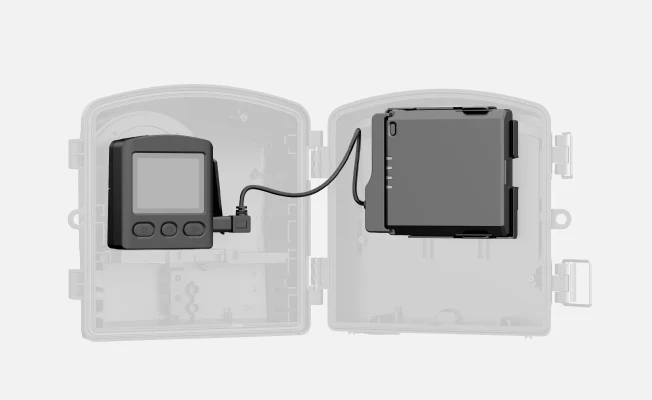

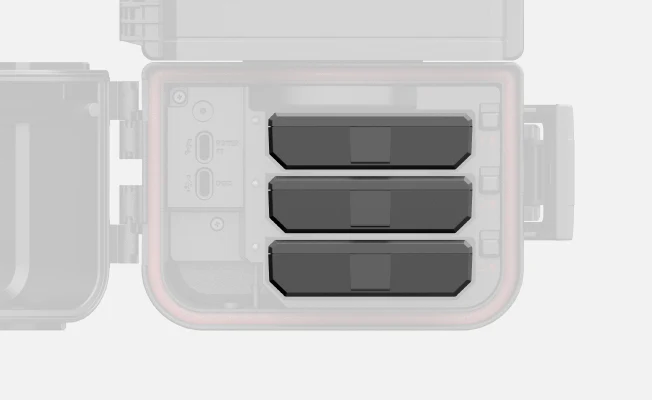

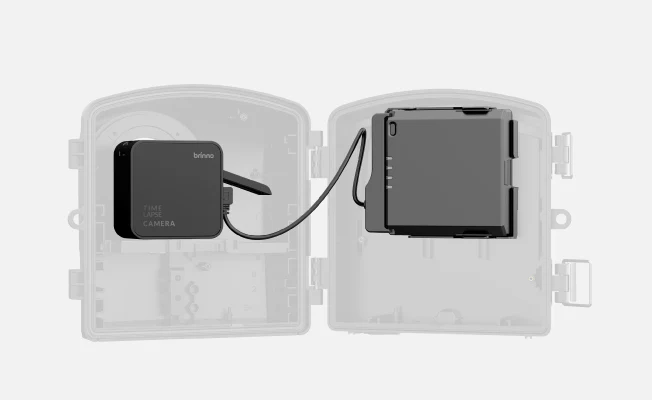

Compatible Models
BCC2000 / TLC2020 Series
Requires ATH2000 Power housing and Replace with flat battery cover.
Unboxing Video
Specification

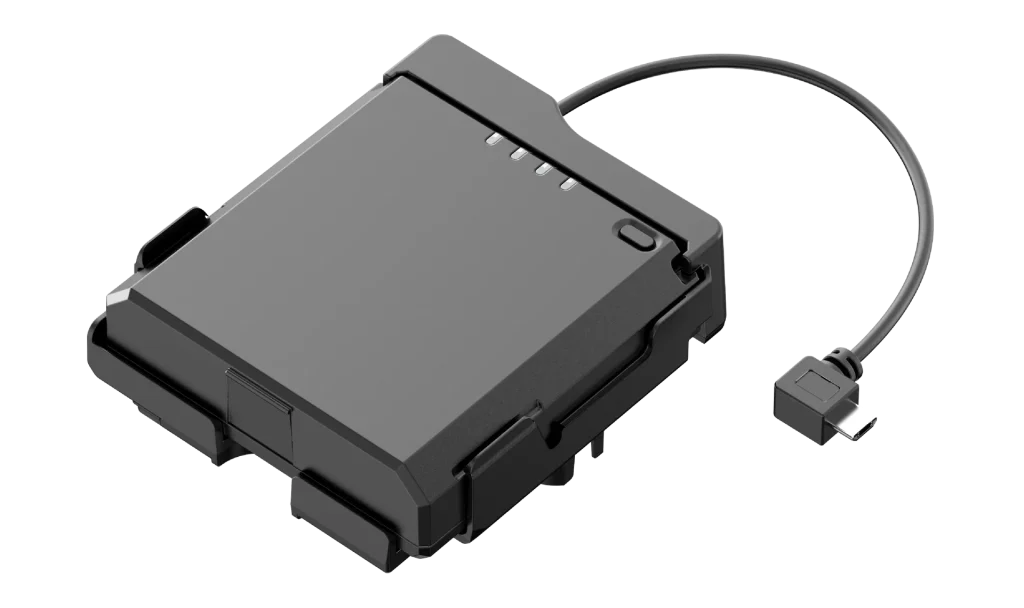

| Product / Model NO. | Rechargeable Battery Kit / APB1000 |
|---|---|
| Power Source | Brinno Battery Pack (MRB1000) |
| Energy Capacity | 12,600 mAh/ 45.4 Wh |
| Always-On Mode | Provides continuous power supply for low power time lapse camera or IoT application. |
| Input Port | USB-C (support 5V 2A Quick Charge) (on battery pack) |
| Output Port | Micro USB connector (for Brinno camera) USB-C port |
| Output Voltage & Output Current | 5V 2A (max. for total two output) Micro USB: continuous output 5V 500mA (Max instantaneous output 5V 1A) USB-C: continuous output 5V 1A |
| Compatible Models | BCC5000 BCC2000 Plus BCC2000/ TLC2020 series (with ATH2000) TLC120 (with ATH2000) |
| Operating Temperature | -4 °F ∼ 140 °F (-20 °C ∼ 60 °C)* |
| Size (WxHxD) | 3.68 x 3.22 x1.46 in (93.5 x 82 x 27.2 mm) |
| Weight | 9.9 oz (280 g) |
| Package Contents | Brinno Battery Pack (MRB1000) x1; External Power Adapter; Hook and Loop Tape |
NOTE:
* Built-in short circuit protection when over charge, over discharge, over temperature (45°C Input Cutoff, 60°C Output Cutoff), under temperature (0°C Input Cutoff, -20°C Output Cutoff)
