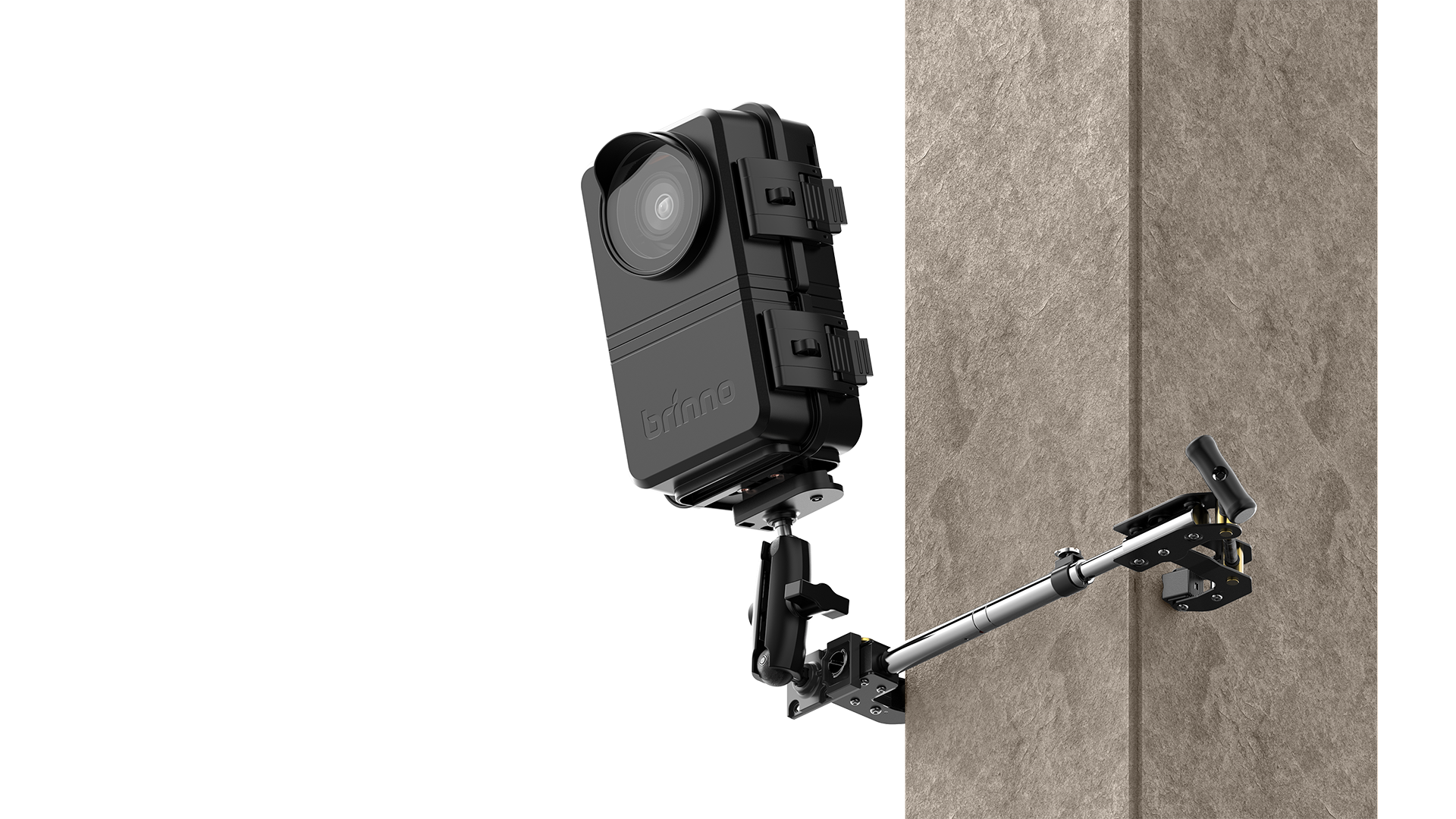

BCC5000
Wi-Fi & 4K Construction Time Lapse Bundlen
The Brinno BCC5000 pairs the TLC5000 4K time lapse camera with durable accessories. The bundle rises to conquer tough outdoor challenges and handles professional photography needs with a business-smart solution, featuring weather-resistant housing and a solid camera clamp for unmatched stability.
Professional Quality
Cloud Enabled Connectivity
Built to Last
Long-Lasting Battery
Holly-Ready

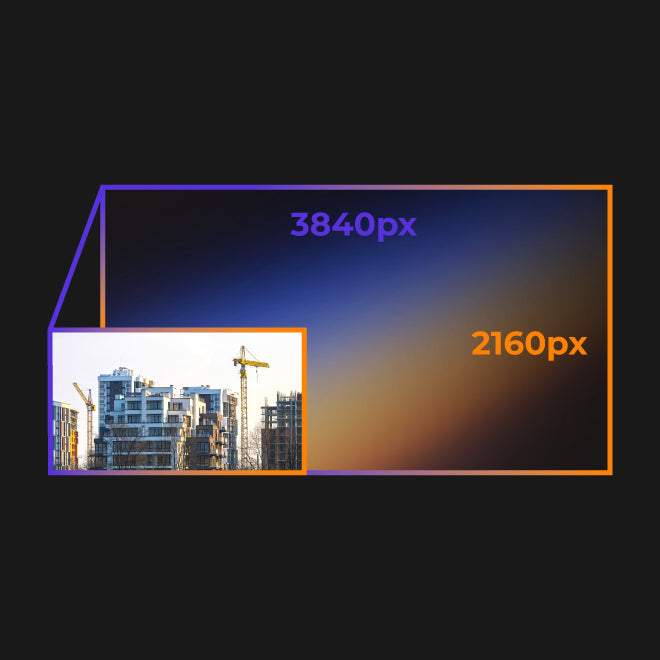

4K Professional Quality
The TLC5000 4K time lapse camera equipped SONY STARVIS 2 sensor provides clear HDR for balanced exposure and remarkable low-light image performance in dark environments.
Empower Business
Wi-Fi & BLE Simple Management
A business-made solution with remote cloud access and Bluetooth connectivity, designed for outdoor recording management via your laptop desktop and mobile devices.
Built To Last
Reliable Protection For Stability

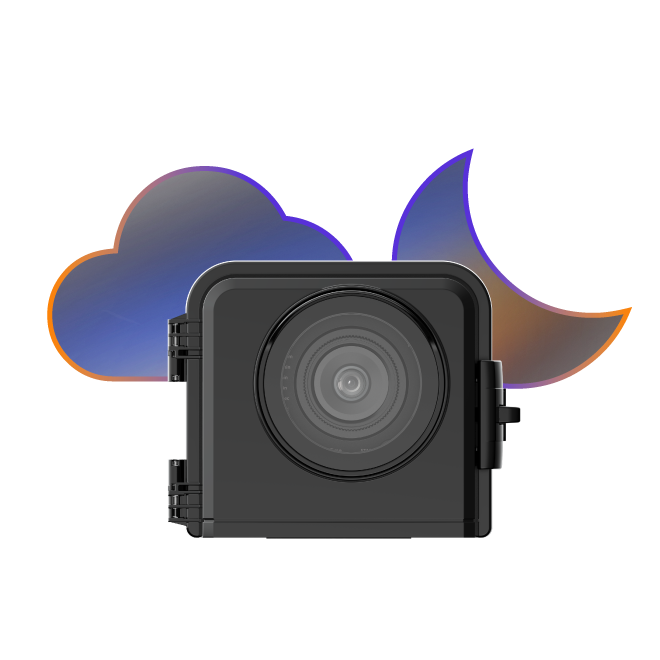

The newly designed ATH5000 Construction Power Housing provides robust IP65-rated protection, ensuring reliable performance in outdoor time lapse environments. The custom-built ACC5000 Camera Clamp Pro combines stainless steel and aluminum components to deliver maximum support and long-term durability.

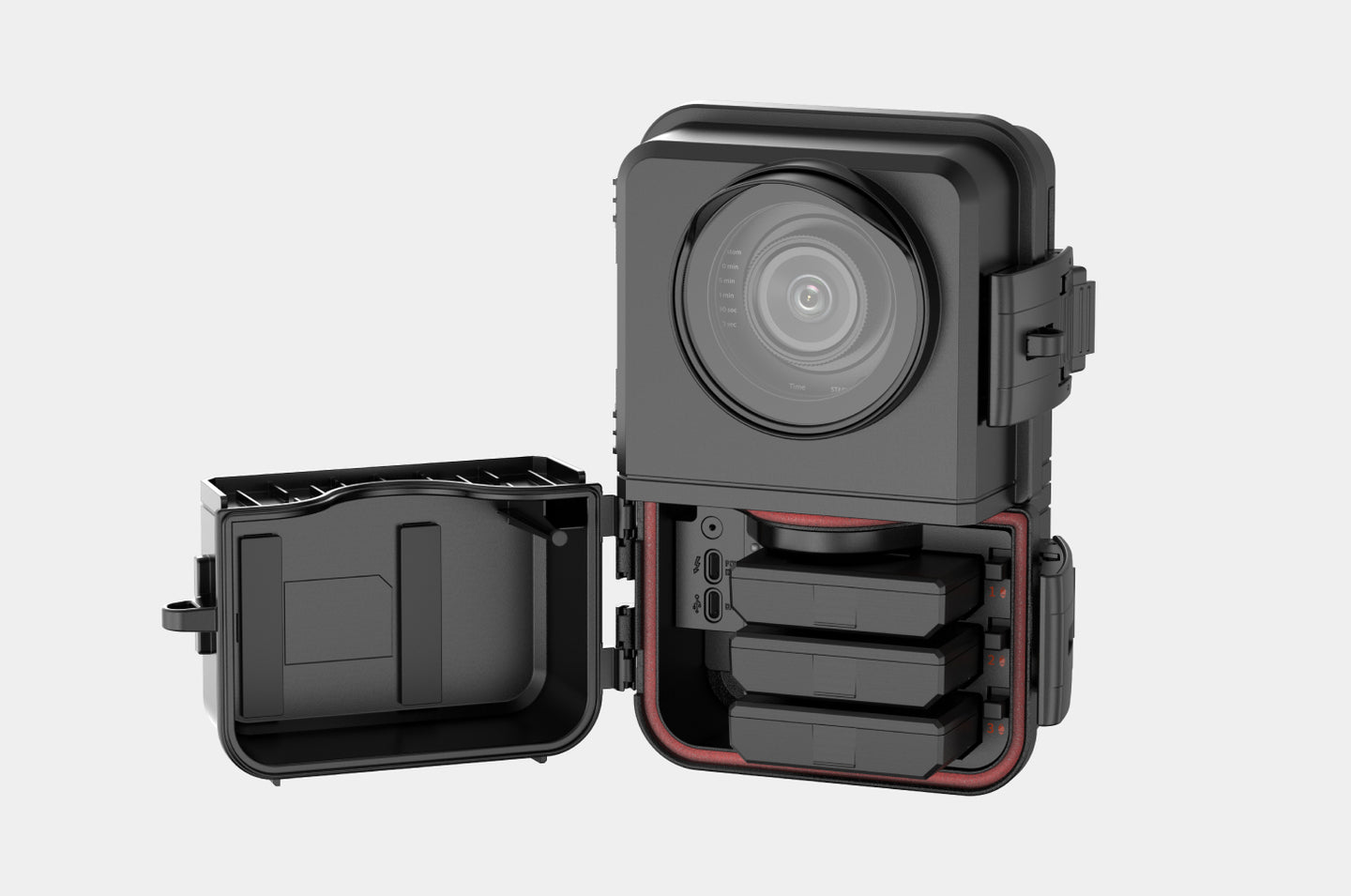

Long Live Camera
Reuseable & Rechargeable battery
The first time lapse camera to feature the high-capacity Brinno Rechargeable Battery. Built-in powerful lithium cells ensures an extended power supply, nealy 200 days of battery life for entire BCC5000 bundle. (5-minute capture interval)
Quick Operating Design
Step 1
Turn on the camera
Step 2
Set the interval
Step 3
Start Recording!

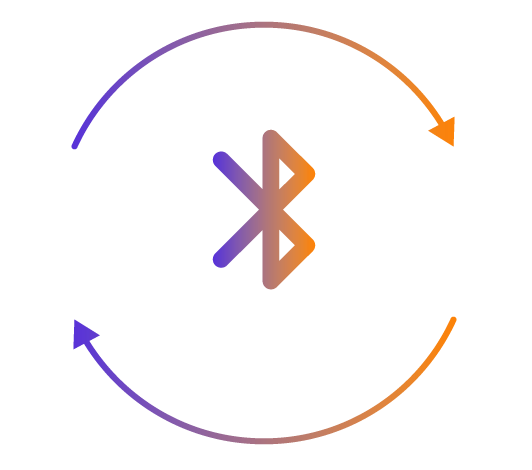

BLE Control
The Bluetooth connection between the time lapse camera and your devices led to convenient control of your equipment.
Link to Bluetooth APP
Tutor Bluetooth Manual
Remote Cloud Access
Access your time lapse footage from anywhere with remote cloud access, ensuring seamless management and monitoring of your projects from any location.
Link to Wi-Fi Operating APP
Tutor Wi-Fi Manual

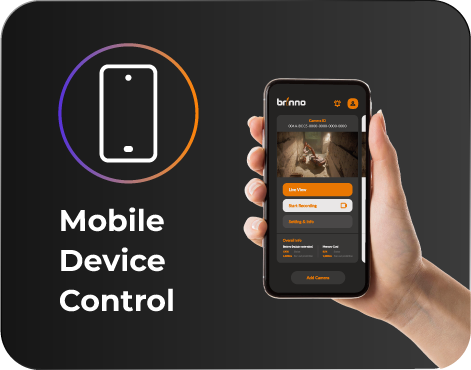

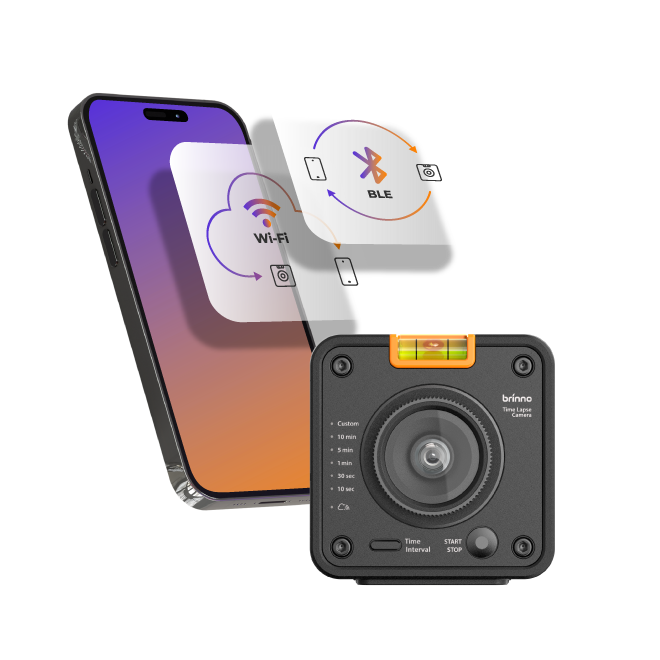

Mobile Devices Control
The Brinno camera managing platform allows you to adjust settings, monitor live view, and easily begin recording from your devices.
High Quality Image

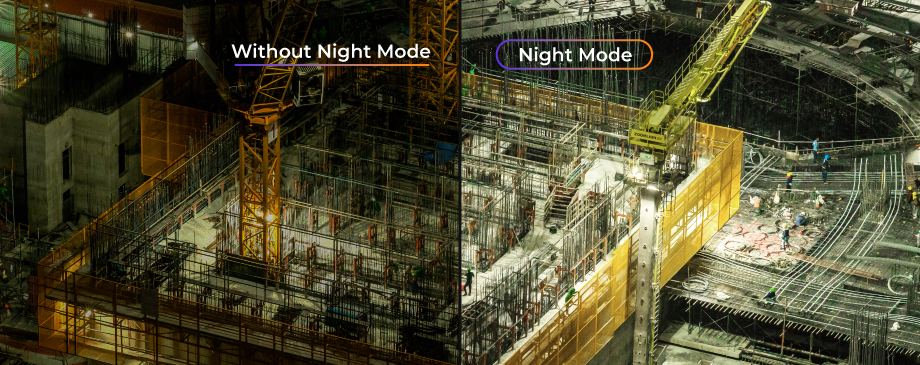

In environments with unpredictable lighting, Brinno’s adaptive camera automatically adjusts to balance light and colors. Clear HDR technology ensures vivid and vibrant visuals under strong brightness, while advanced sensors capture detailed footage even in low-light conditions.
Wide View Angle
In environments with unpredictable lighting, Brinno’s adaptive camera automatically adjusts to balance light and colors. Clear HDR technology ensures vivid and vibrant visuals under strong brightness, while advanced sensors capture detailed footage even in low-light conditions.
Extend Your Camera
In environments with unpredictable lighting, Brinno’s adaptive camera automatically adjusts to balance light and colors. Clear HDR technology ensures vivid and vibrant visuals under strong brightness, while advanced sensors capture detailed footage even in low-light conditions.

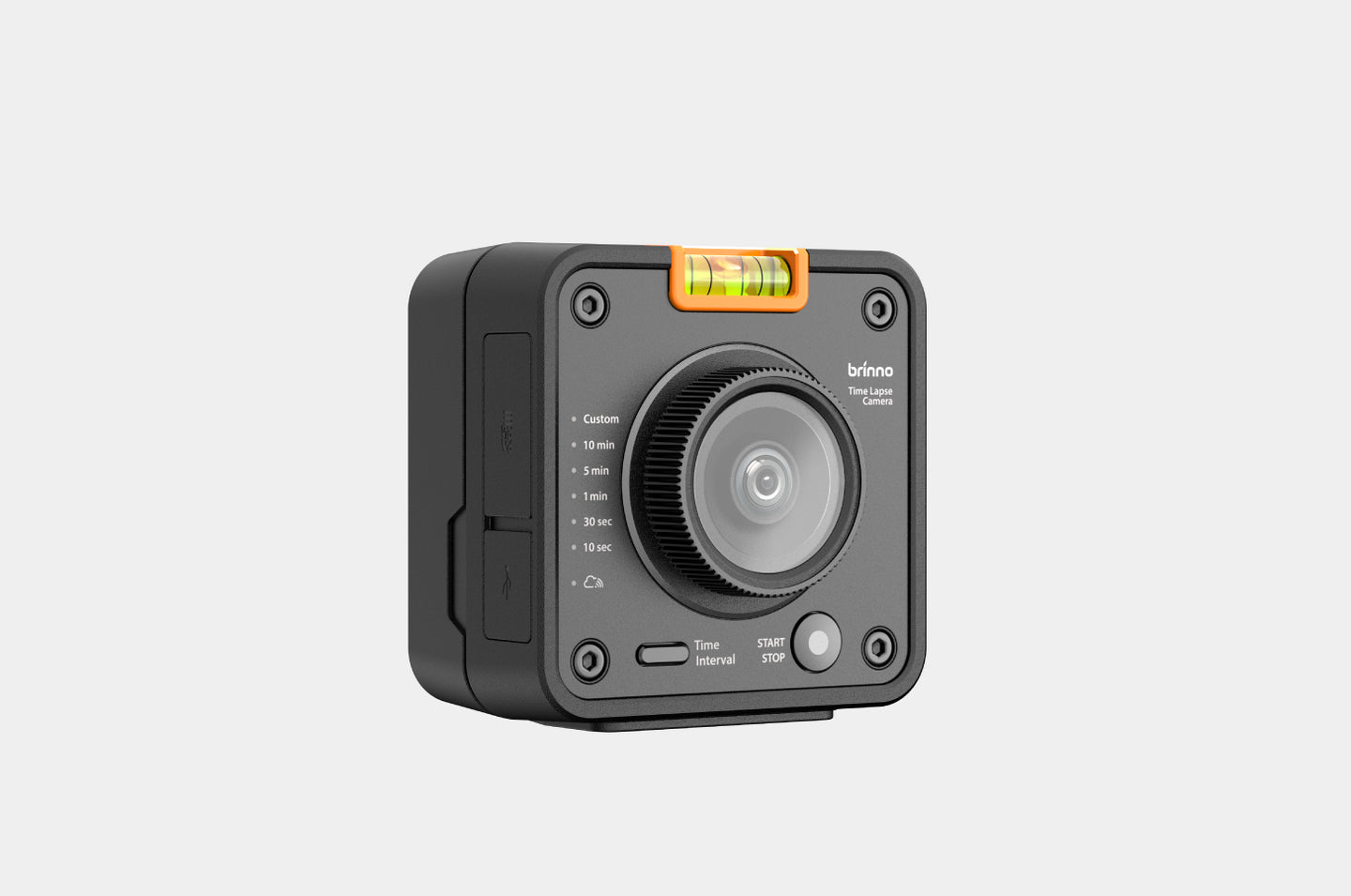

Meet OurUnique Design

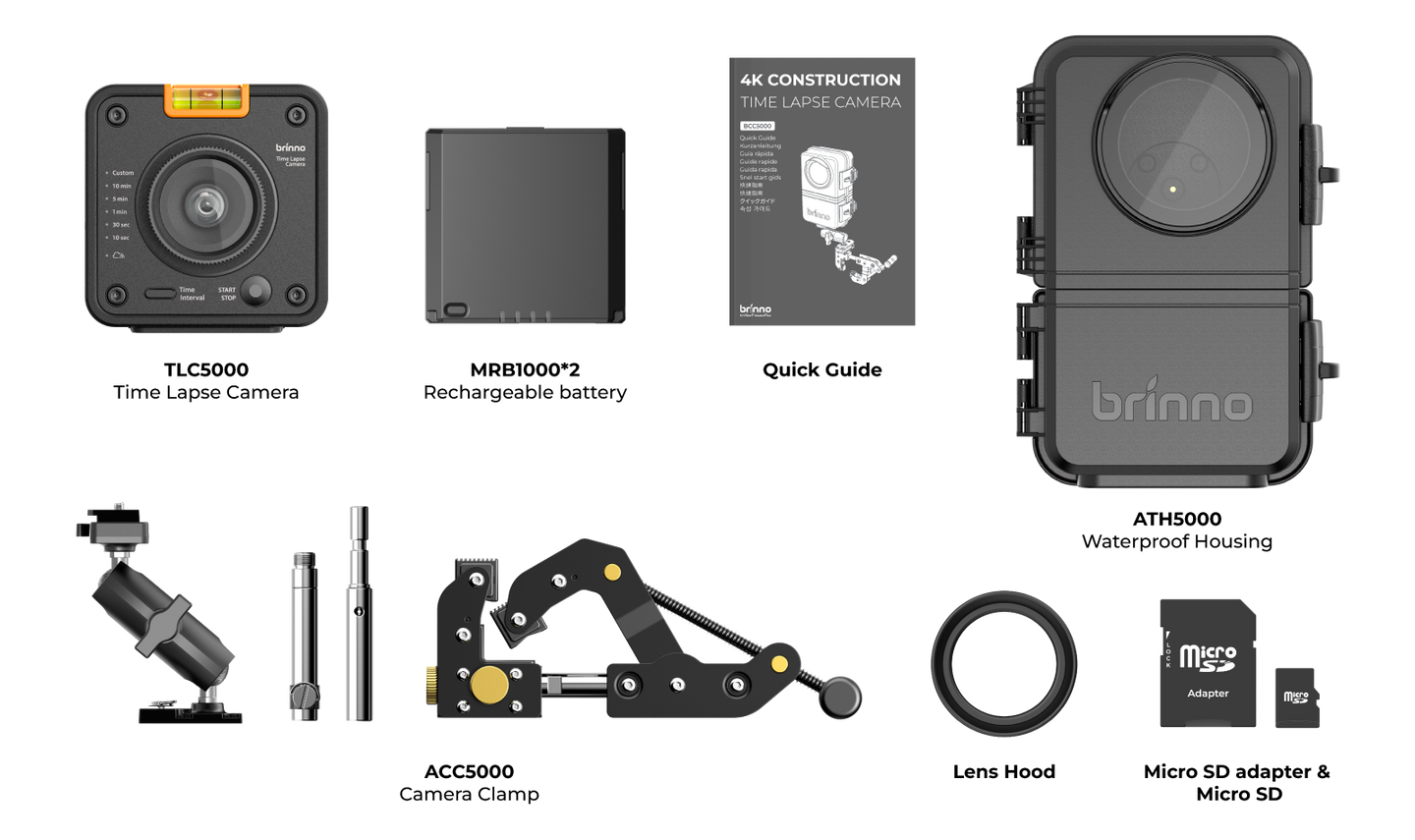

Package Contents
Upgrade With Extra Accessory
BCC5000 Specification
| Model | TLC5000 |
|---|---|
| Resolution | 4K (UHD) |
| Image Sensor | 1/1.8” Sony STARVIS 2 |
| Pixel Size | 2.0 μm (H) × 2.0 μm (V) |
| Aperture | f2.0 |
| Focal Length | 3.5 mm (Actual) 17 mm (35mm equivalent) |
| Field of View | 118° (H: 106°, V:65°) |
| Capture Mode | Time Lapse |
| Time Lapse Interval | 3 sec – 24 hour |
| Video Format | MP4 (Motion JPEG) |
| LCD Screen | NO |
| Wireless Connectivity | • BLE 4.0 • Wi-Fi/ 2.4GHz 802.11 |
| Storage | microSD/ microSD HC/ microSD XC (up to 256 GB, recommend a minimum of Class 10) *1 |
| Power Source | • Rechargeable battery pack (MRB1000) • DC IN 5V 2A (USB-C connector) |
| Connector | USB-C connector (power supply, data transfer) |
| Operating Temperature | 32 °F ∼ 113 °F (0 °C ∼ 45 °C) |
| Size (WxHxD) | 3.8x 3.8x 2.6 in (96.0x 97.5x 66.2 mm) |
| Weight | 7.9 oz (224 g) (Without batteries) |
| Package Contents | • Rechargeable battery pack (MRB1000) • SD card • Quick guide |
| Model | ATH5000 |
|---|---|
| Compatible Camera | TLC5000 |
| IP-Rating | IP65 |
| Camera Mount Screw | 1/4” |
| Dimension (LxWxH) | 6.7x 4.1x 9.3 in (170x 104x 236 mm) |
| Weight | 23.2 oz (657 g) (without camera & batteries) |
| Package Contents | • Construction power housing • Rubber strap*2 • Rechargeable battery pack (MRB1000)*1 |

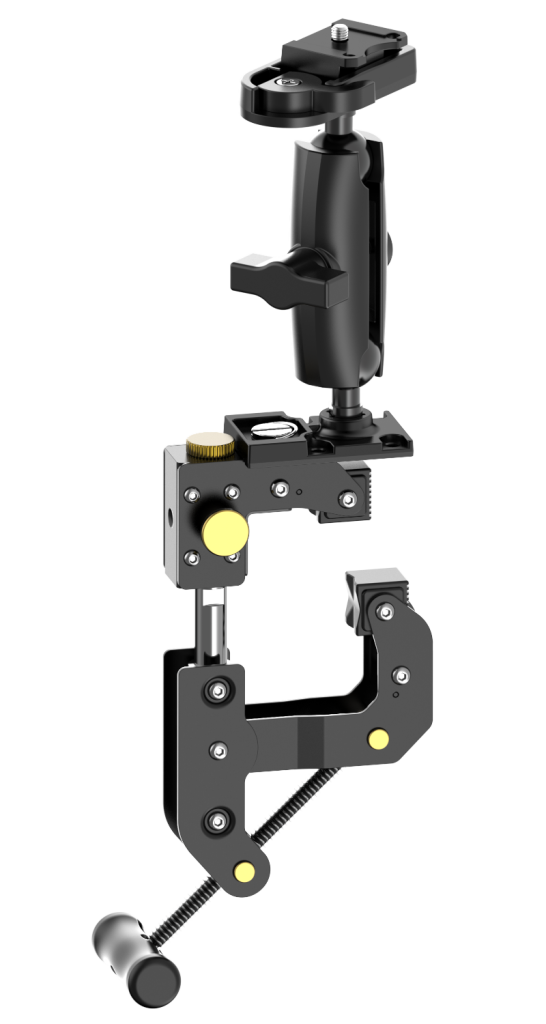

| Model | ACC5000 |
|---|---|
| Contents | • Camera clamp • Magic arm • Extension poles |
| Camera Mount Screw | 1/4″ |

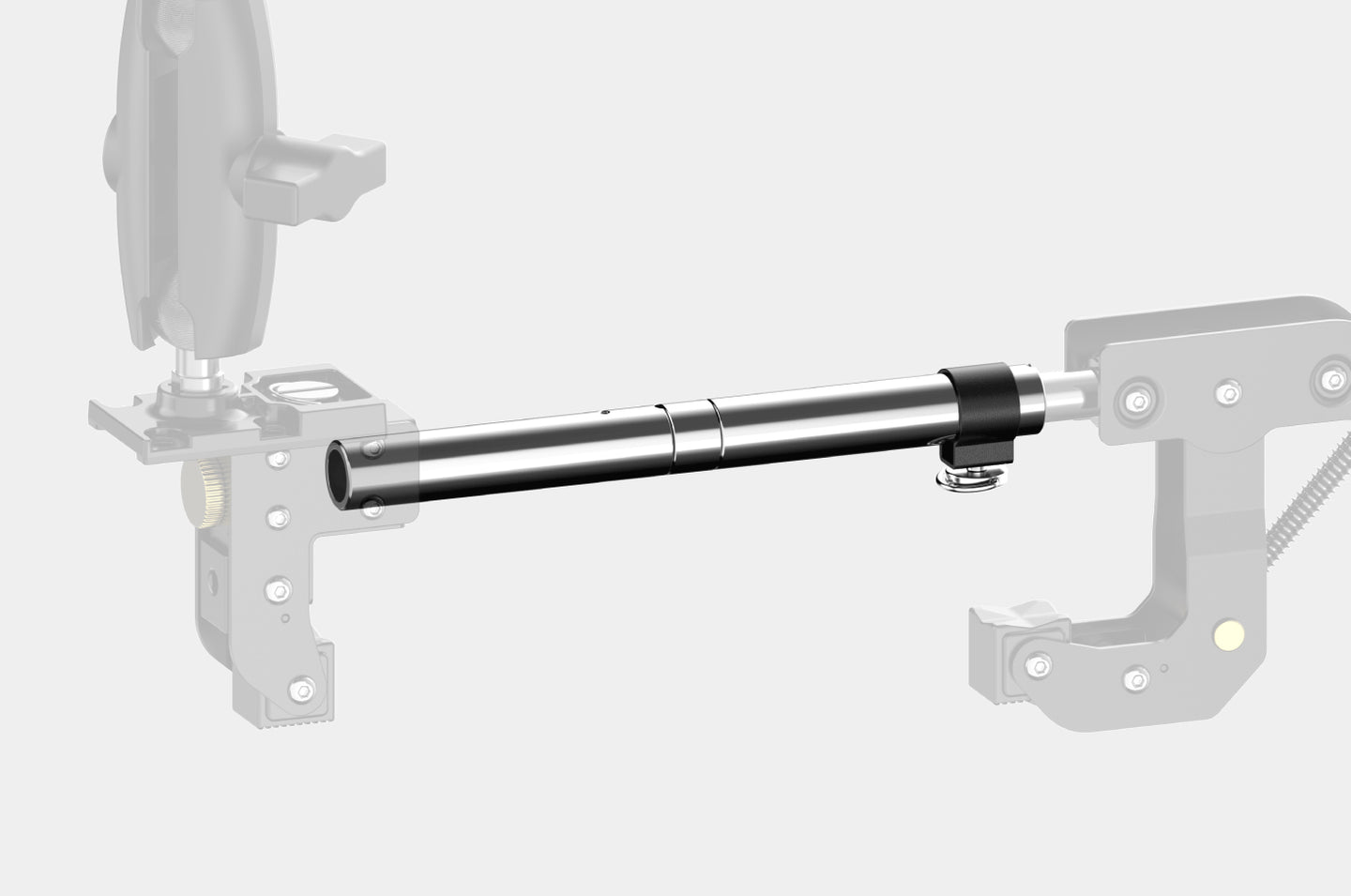

| Clamping Range | • Tube: 0.4~ 3.5 in (10 ~ 90 mm) • Flat surface: 0.04~ 3.5 in (1 ~90 mm) 3.5~ 10.6 in (90 ~270 mm)(with extension pole) |

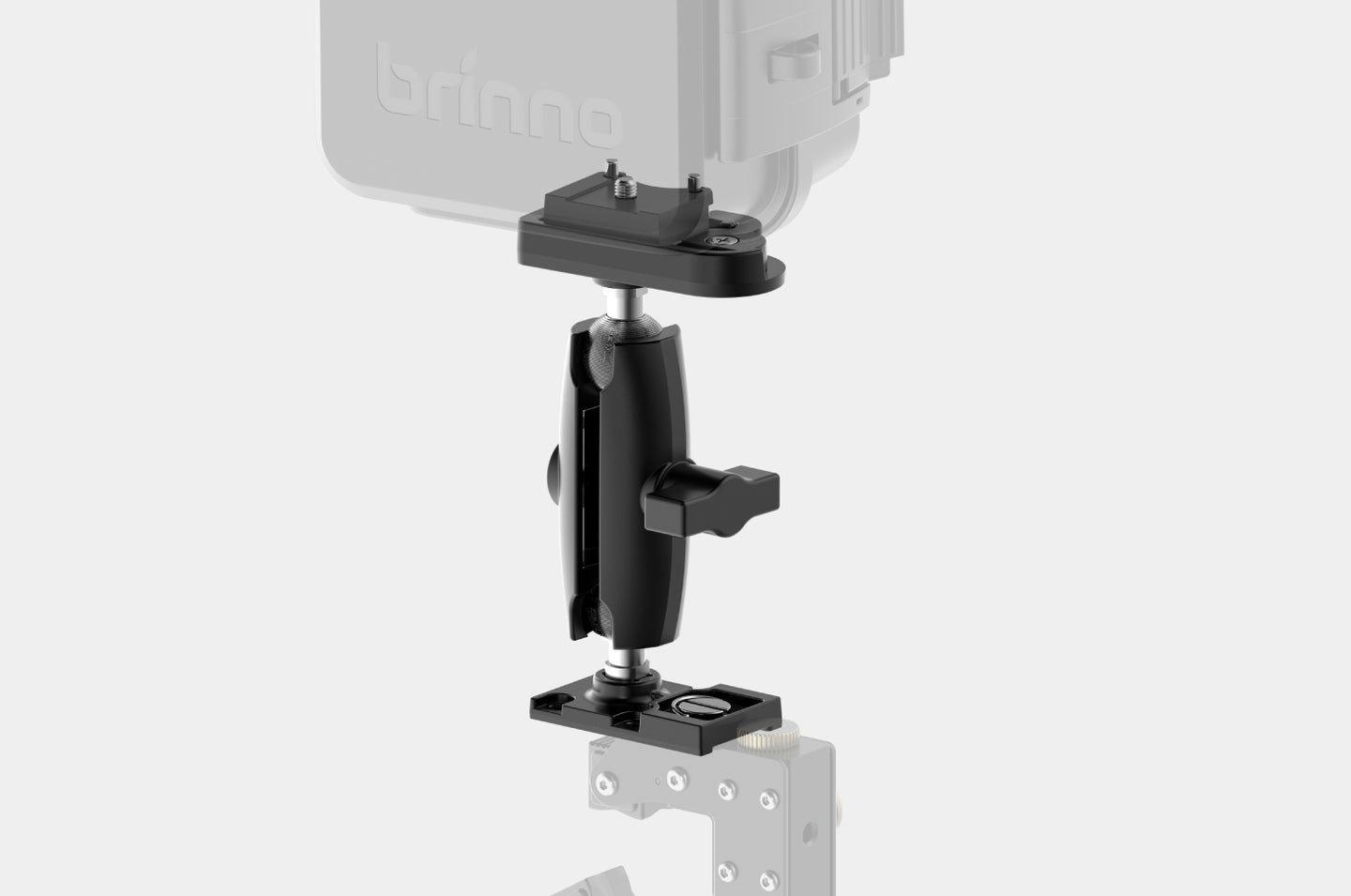

| Magic Arm Load Capacity | 6.6 lb (3 kg) |
| Clamp Load Capacity | 110 lb (50 kg) (without extension pole) |
| Weight | 2.5lb (1.11 kg) |
| Materials | • Clamp: Stainless: Aluminum • Magic Arm: Stainless: Aluminum • Extension Pole: Stainless |
